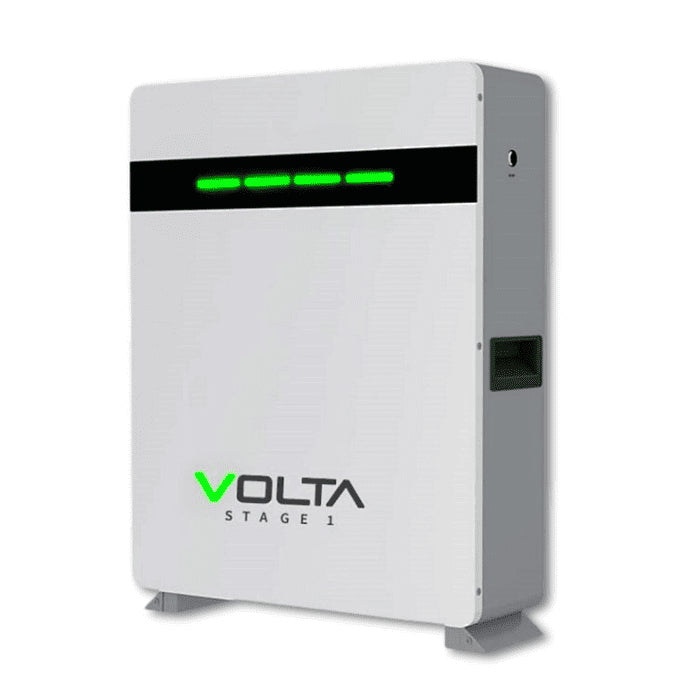

VOLTA 5.12KW LITHIUM-ION BATTERY (Stage 1)
General Data
• Battery Type: Lithium-Ion
• Product Model: VOLTA STAGE 1
• Nominal Energy: 5.12KWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand
Environment Limit
• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3
| Weight |
58 kg |
|---|---|
| Dimensions |
48 × 15 × 60 cm |
| Battery Type |
Lithium-Ion |
| Nominal Energy |
5.12kWh |
| Nominal Voltage |
51.2 VDC |
| Nominal Capacity |
100 Ah |
| Continual Discharge |
1C |
| Continual Charge |
1C |
| Parallel |
Max 8 Units |
| Installation Type |
Wall Mount & Floor Standing |
| Model |
Volta Stage 1 5.12kWh Lithium Battery |
