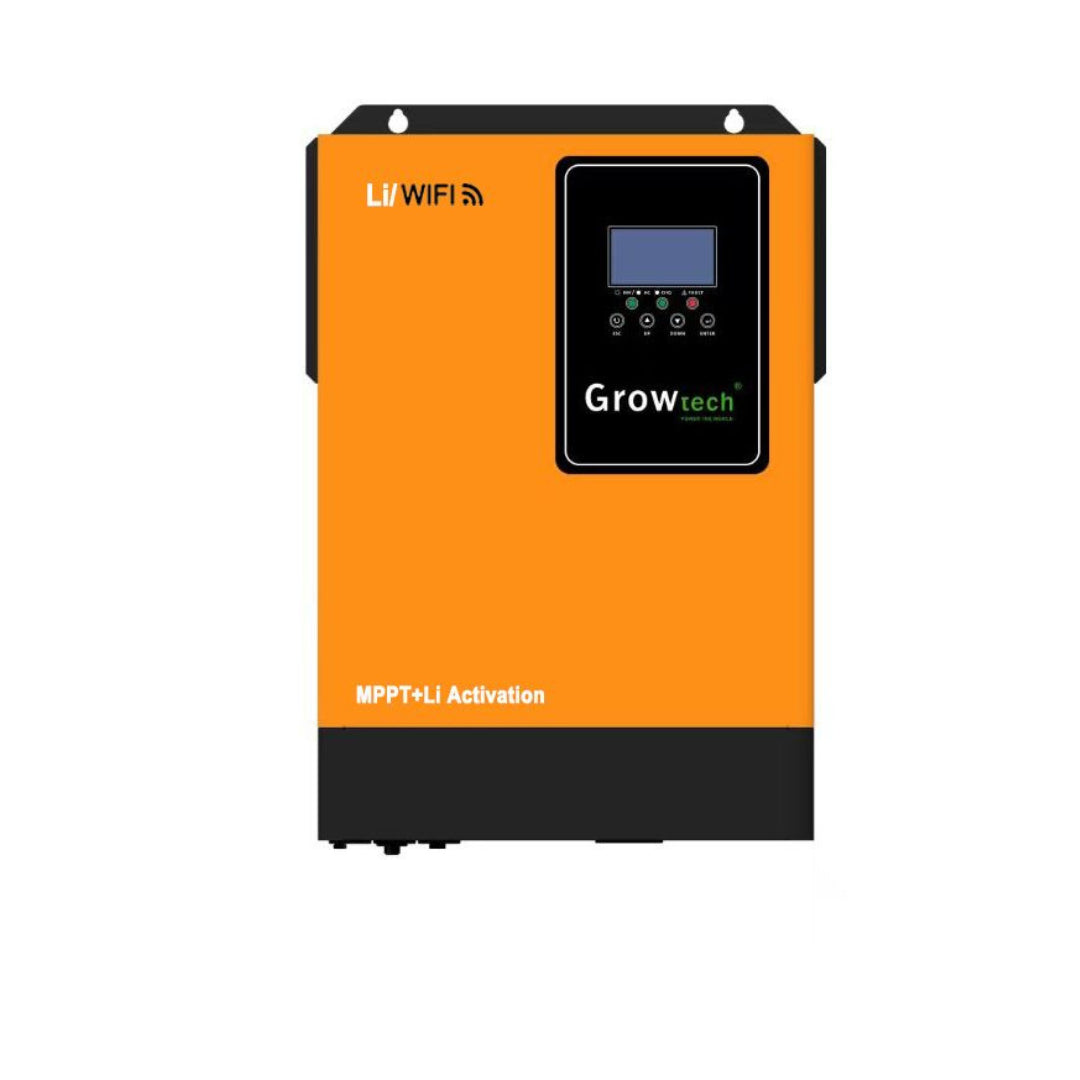

GROWTECH 5.5KVA INVERTER

INPUT

Nominal Voltage: 230VAC
Acceptable Voltage Range: 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency: 50/60 Hz (Auto sensing)

OUTPUT

Nominal Voltage: 220/230VAC ±5%
Surge Power: 11000VA
Frequency: 50/60Hz
Waveform: Pure Sine Wave
Transfer Time: 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV): 96%
Peak Efficiency (Battery to INV): 93%
Overload Protection: 5s @ >=150% load; 10s @ 110%~150% load
Crest Factor: 3:1
Admissible Power Factor: 0.6~1 (inductive or capacitive)

BATTERY

Battery Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 63VDC
Charging Method: CC / CV
Lithium Battery Activation: YES
Lithium Battery Communication: YES (RS485)

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Max.PV Array Power: 5500W
Max.PV Array Open Circuit Voltage: 500VDC
PV Array MPPT Voltage Range: 60VDC~500VDC
Max.Solar Input Current: 18A
Max.Solar Charge Current: 100A
Max.AC Charge Current: 80A
Max.Charge Current (PV+AC): 100A

PHYSICAL

Dimensions D x W x H (mm): 438x295x 105
Package Dimensions D x W x H (mm): 560x375x185
Net Weight (Kg): 9
Communication Interface: RS232+RS485

ENVIRONMENT

Operating Temperature Range: -10℃ to 50℃
Storage Temperature: -15℃ ~ 50℃
Humidity: 5% to 95% Relative Humidity (Non-condensing)
