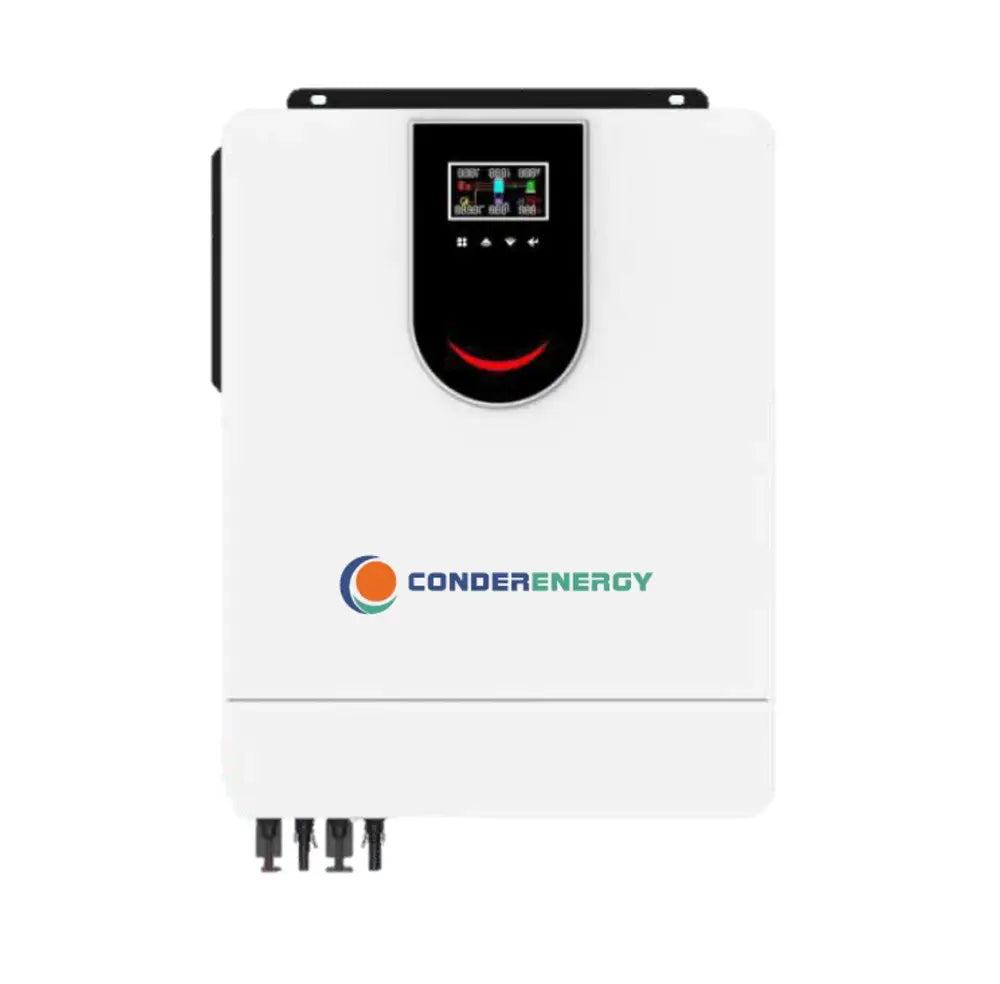

CONDERENERGY 3.5 KVA 24V INVERTER

Specifications:

• Compatible with mains voltage and can charge batteries.
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Pure sine wave inverter
• Built-in solar charge controller
• MPPT Charge Controller
• Operating Temperature Range: -10-50'C


PV INPUT:
Nominal operating voltage 240Vdc Vmax PV:500Vdc
PV input voltage range 60-450Vdc Imax PV:27A
Full load MPPT range 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current 120A

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz


TWO LOAD OUTPUT POWER:

Full Load 3500W
Maximum Main Load:3500W Maximum Second Load 1166W Main Load Cut Off Voltage:22Vdc Main Load Voltage 26Vdc AC INPUT:
Nominal operating voltage 230Vac Maximum input current 30A
Nominal operating frequency 50/60Hz Surge power 7000VA
Maximum AC Charging Current 100A BATTERY:
Battery voltage range 20-33Vdc Maximum battery current 150A

Size:

440 X 355 X 115

9kg

1YEAR REPAIR WARRANTY

What's in the box
1 x Inverter
1 x User Manual
